Steel Formwork

Categories:

Steel Formwork

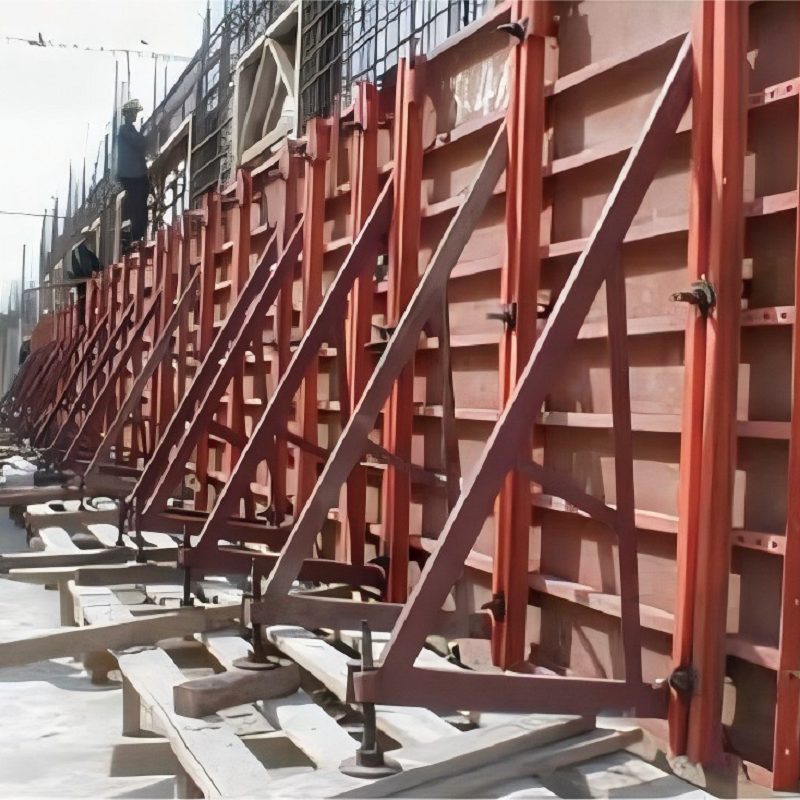

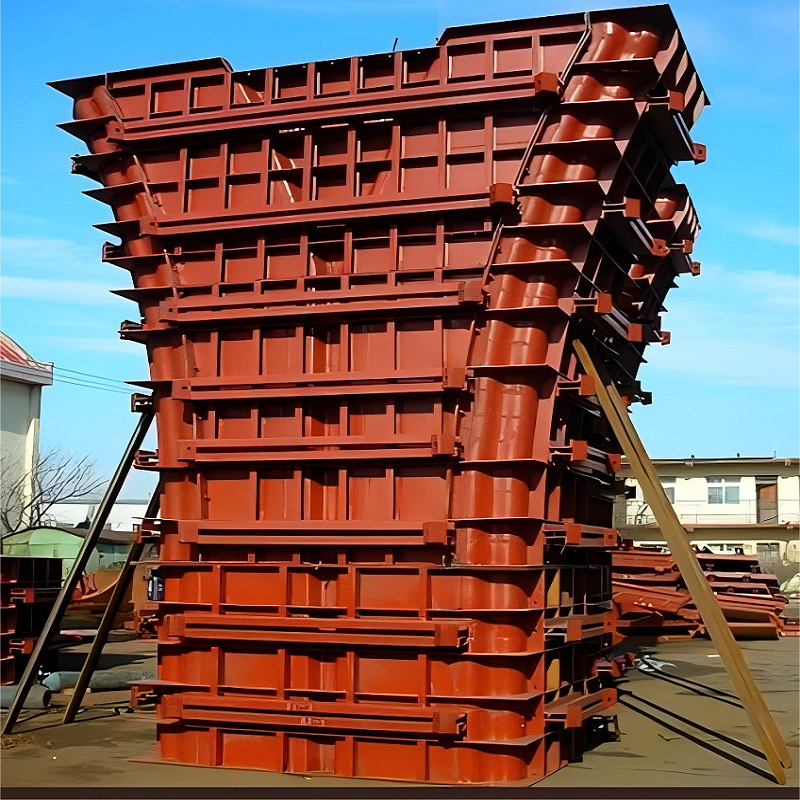

Steel formwork can be used in all types of concrete forming and shuttering, especially in large-scale and high-rise buildings.



Steel formwork can save costs and bring environmental benefits to the construction process. Creating steel formwork requires a minimal production process. Due to its strength, steel formwork is suitable for extreme environments and severe weather conditions. Metal formwork can be regarded as a sustainable building material.



Steel formwork mainly contains steel formwok frames, steel formwork corners,steel formwork clamps and steel formwork accessories.



Description Dimension Unit Weight kg

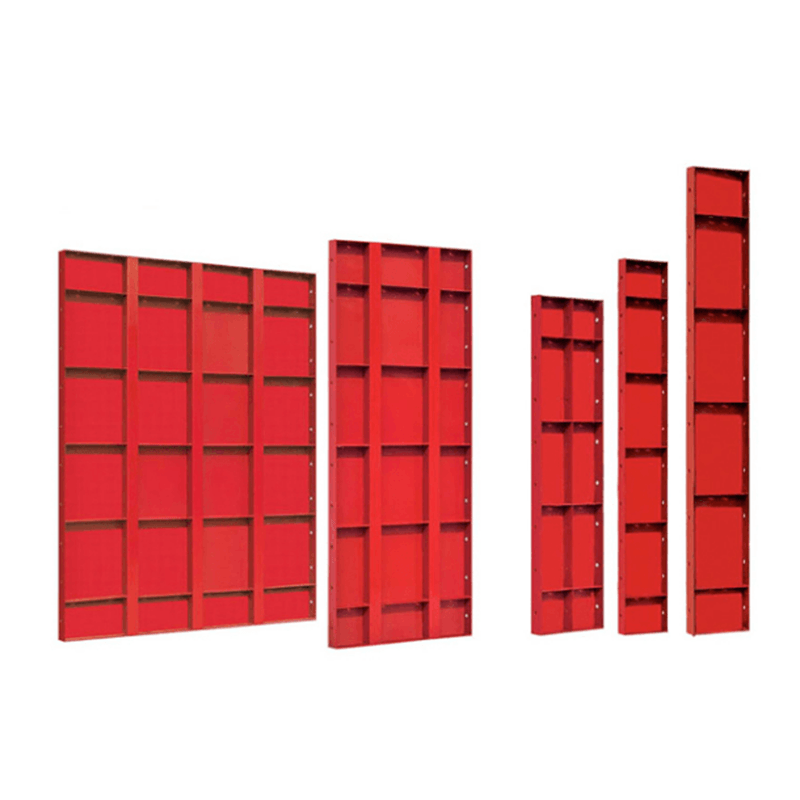

Panal





3000X2400mm 422.96kg
3000X1200mm 205.37kg
3000X900mm 165.09kg
3000X600mm 122.66kg
3000X300mm 80.16kg



Description Dimension Unit Weight kg
Panal



1200X600mm 53.70kg
1200X300mm 33.52kg
900X600mm 43.18kg
900X300mm 26.17kg
600X600mm 30.94kg
600X300mm 18.13kg



Description Dimension Unit Weight kg
Cormer Formwork



3000X400X400mm 143.34kg
1200X400X400mm 61.13kg
600X400X400mm 33.98kg
300X400X400mm        16.53kg





Description Dimension Unit Weight kg
Clamp



Lmax=100mm 4.93kg
Lmax=270mm 6.54kg
Hook



  9.27kg
&nbspConsole Bracket



  21.56kg
Description Dimension Unit Weight kg
Prop



L=950-1550mm 14.42kg
L=1850-3250mm 21.15kg
L=2550-4750mm 27.82kg
L=4650-6000mm 33.37kg
L=6000-10000mm 102.57kg
